Feature:

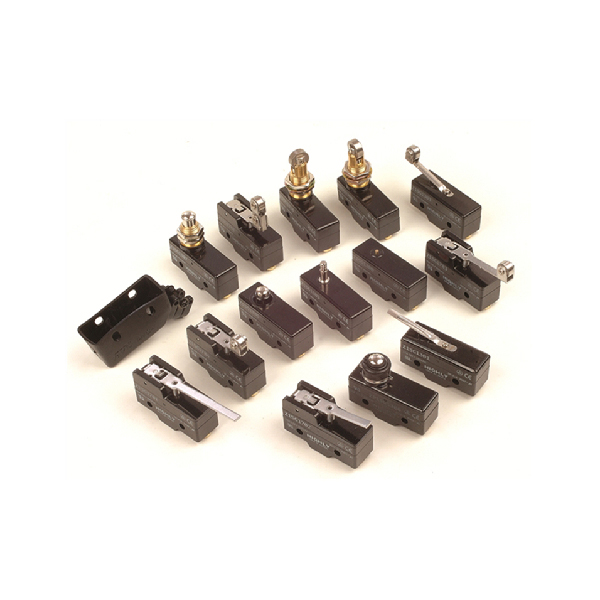

- High precision basic switch in a variety of styles.
- Wide margins of operating conditions increase the operating speed range.
- Available in general purpose.
Specifications:
- Rating:
20(4)A 250VAC EN 61058-1
15A 125VAC or 250VAC UL 61058-1
1/2A 125VDC 1/4A 250VDC - Contact Resistance: 15mΩ max. (initial)
- Dielectric Strength:
AC 1000V (50 or 60Hz) for 1 minute(Between contacts of each terminal)
AC 1500V (50 or 60Hz) fo r 1 minute(between each terminal and non-current-carrying metal parts) - Insulation Resistance: 100MΩ min.(DC 500V)
- Electrically Life: 100,000 operations min.
- Mechanically Life: 1,000,000 operations min.
- Operating Temperature: 0°C~+55°C (humidity of 60% max) UL certification
- Operating Speed: 1,000,000 operations min.
- Operating Frequency: 30 operatioms / min
- Vibration: 10 to 55 Hz , 1.5mm double amplitude
