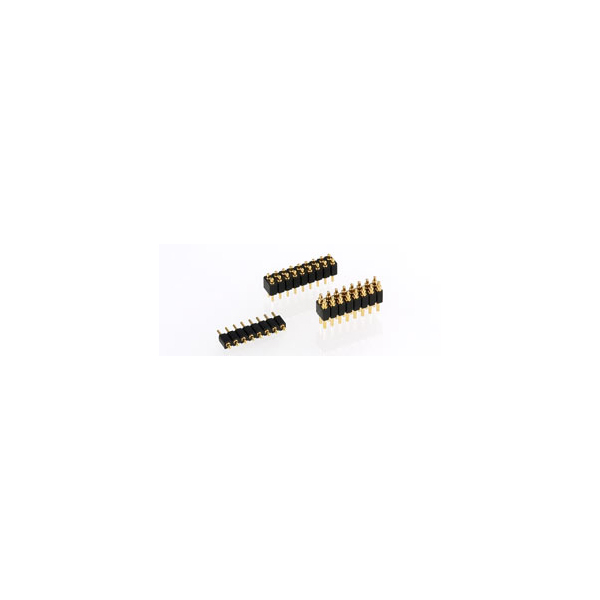

Low resistance modular connectors with spring-loaded contacts (SLC), solder tail. Contacts with improved, shaped piston design.
Technical specs
- Flammability: UL 94V-O
- Piston and barrel: Brass CuZn36Pb3 (C36000)
- Contact clip: Beryllium copper (C17200)
- Spring: Music wire DIN 17223, gold plated
- Max. stroke: 1.4 mm
- Forces initial: 0.25 N
- Forces initial at 1/2 stroke: 0.85 N
- Mechanical life: 50’000 cycles
- Max. operating current: 3.5 A
- Contact resistance: 10 mΩ (static measurement, halfway position)
- Plating: Barrel: 0.25 µm gold – Piston: 0.5 µm gold
