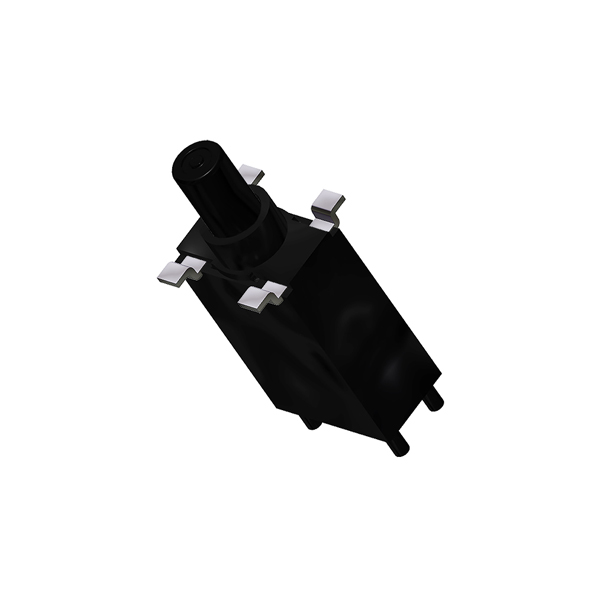

PBH00S
Description
- Push button with normaly closed actuation
- Anti manipulation switch
- Switch can activate signal of manipulation on housings, e.g. in smart meters
- Gold plated contatcs to ensure long term switching function even without actuation
- PCB assembly on bottom side with actuation on PCB top side
Mechanical
| Fixation mode | SMT |
| Actuation direction | vertical |
| Operating travel | switch ON: 0.0 mm switch undef.: > 0.0 – 0.5 mm switch OFF: > 0.5 – 4.7 mm |
| Contact form | Normally Closed |
| Length | 7.0 mm |
| Width | 4.0 mm |
| Perm. ambient temperature | -40 °C … +85 °C |
| Reflow soldering | JDEC J-STD-020 E |
| Allowed number of soldering processes | 1 |
| Storage time | 6 months |
| Processing time | MSL 5a |
Electrical
| Rating | 12.0 VDC / 1A |
| Contact resistance | < 100.0 mΩ |
| Insulation resistance | > 100.0 MΩ |
| Test voltage | 250.0 VAC / 1.0 min |
Material
| Housing | PA46 |
| Contacts | CuZn Au plated |
| Pin plating | CuZn, tin plated |
