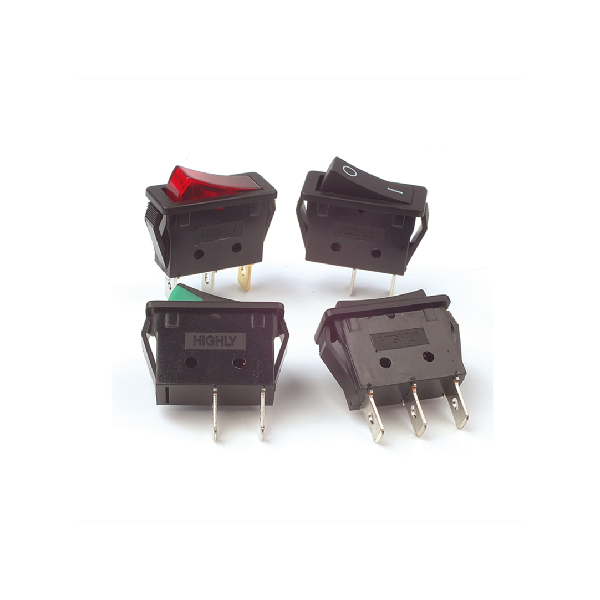

Feature:
- Power switch conforms to safety standards for electrical equipment.
- Compact with a good space factor.
- Snap-in type for easy mounting.
- The color can be changed to correspond to the set design.
- Lamps for 125V and for 250V respectively for illuminating type.
Specifications:
- Item: Standard
- Rating: 12A 125VAC / 250VAC
- Contact Resistance: 50mΩ max. (initial)
- Dielectric Strength: AC 1500V (50/60Hz for 1 minute)
- Insulation Resistance: 100MΩ min (DC 500V)
- Electrically Life: 10,000 cycle
- Operating Force: 500±200 gf
Download: PDF
