SP Series

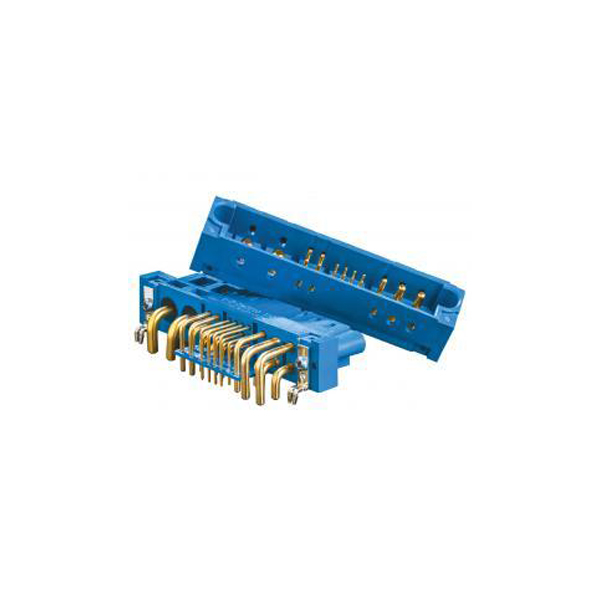

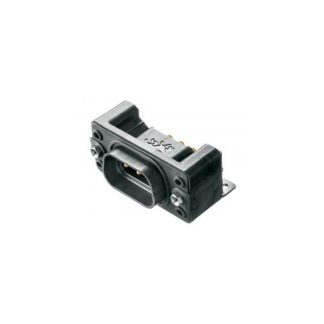

The PA series IP65/IP67/IP68/IP69K connector offers a multiplicity of connector features, which makes it a first choice for demanding rail, earthmoving, battery and related applications. It features operating temperatures up to 200ºC and is UV, shock & vibration, and salt spray protected.
Description
General
| Part Number Prefix | SP |
| Performance Level | Industrial, Mil/aero |
| Qualifications | UL #E49351 |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials
| Insulator Material | Polyester |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
Electrical
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 300 to 3000 |
| Working Voltage (V rms) | 100 to 1000 |
| Initial Contact Resistance (mΩ, max) | Power: 0.2, Signal: 5 |
| Contact Current Rating (A) | Power: up to 100, Signal: 3 |
Mechanical
| Shape | Rectangular |
| Body Style | Free cable, PCB, Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Insulator keyway |
| Locking System | Integrated latch, Jackscrews |
| Blind Mating | Optional |
| Contact Style | Fixed, Removable |
| Contact Size | #4, #8, #12, #16, #18, #22 |
| Female Contact Design | Open entry, Closed entry |
| Contact Retention Mechanism | Metal clip, Press-in |
| Contact Retention (N) | 27 to 134 |
| Contact Termination | Wire, PCB |
| Mating Cycles | up to 1000 |
Environmental
| Temperature Range (ºC) | -55 to +125 |
