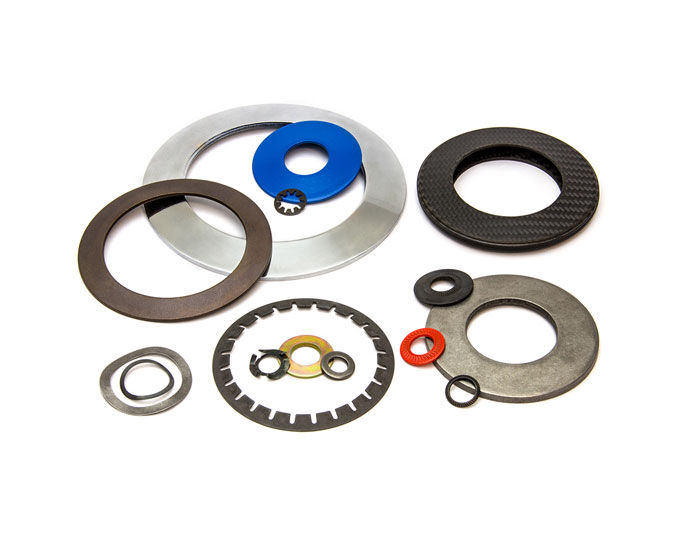

Types of Disc Springs & Belleville Washers
Carbon Composite Disc Springs
- Alternative to steel elements
- Up to 70% lighter weight
- Non-corrosive
- Non-magnetic
- Available from MW Industries
Belleville Washers (Classic)
- Designed to meet high performance requirements of dynamic loading applications
- Typically made from High Carbon or Alloy steel
- Available from MW Industries
Belleville Washers (Pre-Stressed)
- Used to maintain load or tension in light bolted assemblies
- Sized for standard bolt sizes
- Pre-stressed
- Available from MW Industries
Belleville Washers (Heavy Bolted)
- Designed for heavy bolted applications
- Used when there is a need to overcome thermal expansion / contraction
- Stainless steel options for corrosion resistance
- Not pre-stressed – designed for static bolt applications only
- Available from MW Industries
Flange Disc Springs (FL / MFL)
- Elastic mechanical elements designed primarily for pipe flange applications
- Reactive power keeps bolt joint tight under all conditions
- Available from MW Industries
Flange Disc Springs (NDS)
- Maintain bolt tension and gasket pressure around the flange
- Stand up under the most severe conditions
- Automatically adjusts for thermal variation, vibration, and mechanical shock stress
- Available from MW Industries
Flat Washers (SFW)
- Made from 17-7 stainless steel
- Provide strength of heat treatment and corrosion-resistance
- Great for outdoor use or in harsh environments
- Available from MW Industries
Ball Bearing Spring Washers
- Especially designed as preloading springs for use with radial ball bearings
- Help to maintain positioning accuracy of the bearing
- Minimize vibration and shaft deflection
- Available from MW Industries
Slotted Disc Springs
- Slotted elements reduce the spring load and increase deflection
- Available from MW Industries
Contact Disc Springs
- Improved bolt connections – compensates for developed looseness, loss of bolt tension due to applied surface deterioration, or movement due to thermal changes
- Available from MW Industries
Curved Spring Washers
- Cylindrical curve is well-suited for application requiring flexibility, light loads, and repeated cycles through a range of motion
- Available from MW Industries
Serrated Disc Washers
- Serrated element ideal for use with almost any screw or bolt
- Available from MW Industries
Finger Spring Washers
- Counteract noise, excess wear, end play, and vibration
- Especially effective at high speeds
- Available from MW Industries
Wave Spring Washers
- Efficient for obtaining the required load when the load is static, the working range is small, and the allowable amount of axial space is limited
- Available from MW Industries
Custom Disc Spring Manufacturing
MW Industries’ Maryland Precision Spring location is a leader in custom, precision disc springs and Belleville washers, having designed and manufactured thousands of custom disc springs for a range of unique applications.
If your application needs an engineered solution due to special environmental conditions, tight space requirements, or service life expectations then let MWI help. Together, we will optimize the performance of your system by providing insight into manufacturing methods that minimize your cost.
In addition to custom designs, we offer special packaging of disc springs including stacking, to make your final assembly operation more efficient.
Contact our disc spring team for more information about custom disc spring design and manufacturing.
MWI Production Capabilities
MATERIALS
- Carbon Steels
- Alloy Steels
- Stainless Steel Alloys
- Tool Steels
- Specialty Metals
MARKETS SERVED
- Agriculture
- Automotive
- Auto Racing
- Aviation / Aerospace
- Chemical Processing
- Computers
- Electrical
- Energy
- Hand & Power Tools
- Heavy Trucks
- Machine Tools
- Material Handling
- Medical
- Mining
- Off-Road Machinery
- Oil Field Equipment
- Outdoor Power Equipment
- Retail Products Display Fixtures
- Telecommunications
- Transportation
- Valves
- And More!
