Applications : Product Identification :
．Power supplies . FC 0520 – 100 K – 8RV – UL
．Power amplifiers . (1) (2) (3) (4) (5) (6)

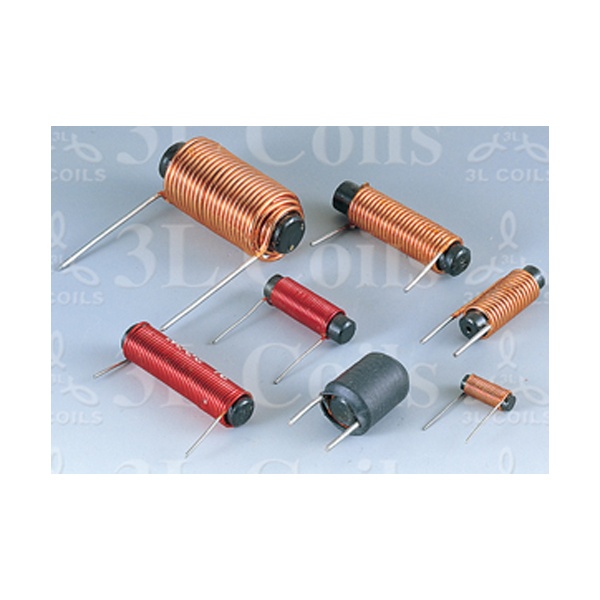

．Noise filter for Switching regulators . (1) Type : Basic model high current choke .
．SCR and Triac circuits . (2) Style : Core D=5 mm L=20 mm .
(3) Inductance : Example : 100 for 10 uH
Features : (4) Inductance tolerance : K : ±10% ; M: ± 20% .
．High saturation current . (5) Shape: 8RV indicate PIN’s length is 8mm and
．General purpose inductors . Right wound and Vertical structure; No code is
．Low cost design . normal type.
．Tin plated leads . (6) Sleeve:”UL”: UL Tube,black; No code: no sleeve.
．Varnish coated or UL tube.
Characteristics : Test equipment and test steup :
．Rated Current : It is either the inductance is 20% lower L: LCR meter, @1kHz/0.25V, 25℃.
is than its initial value in DC. saturation characteristics DCR: Milli-ohm meter.
or temperature rise becomes △T=25℃(Ta=20) ．Electrical specifications at 25℃.
Whichever lower.
．Operating temperature : -20℃ to 80℃.
